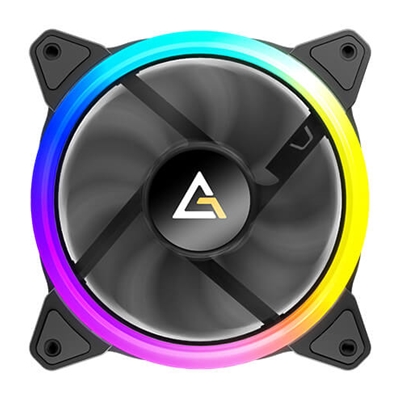

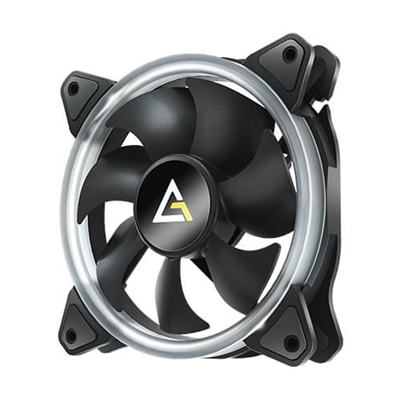

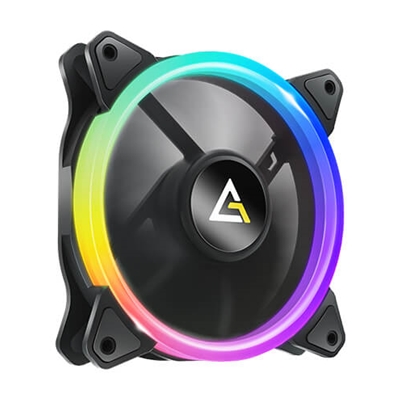

Antec Neon 120 ARGB PWM Case Fan, 3 Pack, Hydro Bearing, 800-1600 RPM, Black
| Product Type | Case Fan |
| Fan Size | 120mm |
| Max Fan Speed | 1600RPM |
| Fan Shroud Colour | Black |
| LED Colour | Addressable RGB |
| Connections | 4-Pin Fan & 3-Pin ARGB |
£ 12.49
Guaranteed Safe Checkout
NEON 120 PWM ARGB FAN 3PK WITH CONTROLLER
Personalize RGB Lighting
Unlimited color transformation, achieving magical lighting effects with multiple-choice controls and multiple different modes.
Highly Efficient Ventilation
Fan blade design balances airflow and loadness, providing highly efficient ventilation (800 – 1600 RPM± 10%), superior air pressure and airflow (1.38 mmH20 / 35 CFM) and low acoustic pressure level (25.6 dBA).
Hydraulic Bearing Fan
Hydraulic bearing provides long-lasting, near-silent operation.
Anti-Vibration Pads
Anti-Vibration pads reduce vibration when the fan is operating.
Two Individual Cables
3-Pin ARGB connector & 4-Pin PWM connector.
Quiet Operation
Rubber pads and hydro bearing help the fan run quietly.
Synchronizable RGB Lighting in 2 Ways
Sync with major MOBO houses including Gigabytes, Asus & MSI, or sync with the Control Hub which is included in the 3-in-1 pack.
Specifications
Model Name
Neon 120 ARGB
Fan Type
ARGB PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydro Bearing
Fan Speed
800-1600RPM ± 10%
Airflow
35 CFM
Air Pressure
1.38 mmH2O
Fan Noise Level
25.6 dB(A)
Lifespan
30,000 hours
Connector
FAN: 4-pin PWM | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V
Rated Current
FAN : = 0.10A ± 10% | LED : = 0.26A ± 10%
Warranty
1 Year
| Weight | 0.6 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
1 Year Return To Base Warranty
DESIGN
| Illumination LED | Yes |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Fan voltage | 13.2 V |
| Fan current | 0.1 A |
| Rated voltage | 12 V |
| LED voltage | 5.2 V |
PERFORMANCE
| Type | Fan |
| Suitable location | Computer case |
| Maximum airflow | 35 cfm |
| Maximum air pressure | 1.38 mmH2O |
| Noise level (high speed) | 25.6 dB |
| Bearing type | Hydraulic |
| Fan's mean time to failure (MTTF) | 30000 h |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1600 RPM |
TECHNICAL DETAILS
| Warranty period | 1 year(s) |
WEIGHT & DIMENSIONS
| Height | 25 mm |
| Width | 120 mm |
| Depth | 120 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
