Antec Fusion T3 140mm ARGB PWM Case Fan – Hydraulic Bearing, 600-1500 RPM, Black
| Product Type | Case Fan |
| Fan Size | 140mm |
| Max Fan Speed | 1500RPM |
| Fan Shroud Colour | Black |
| LED Colour | Addressable RGB |
| Connections | 4-Pin Fan & 3-Pin ARGB |
£ 5.79
Guaranteed Safe Checkout
Fusion T3 140 ARGB PWM FAN
30MM THICKNESS FOR SUPREME PERFORMANCE
30mm overall thickness with extended fan blades and an increased number of fan blades to enhance airflow pressure and provide a stable airflow.
CREATE YOUR CHARISMA

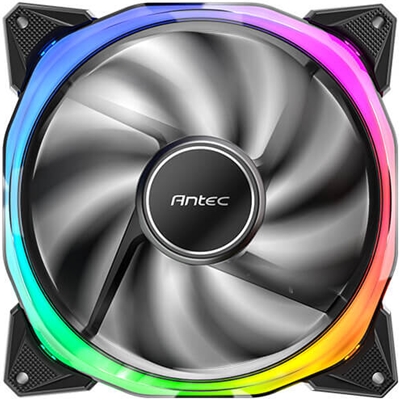

The brand-new Fusion T3 140 ARGB case fan features a unique dual-layer dodecagon-shaped lighting ring & hydraulic bearing, bringing to you an unforgettable experience both visually and functionally.
UNIQUE MULTILATERAL SHAPED LIGHTING FRAME PROJECTS VARIOUS LIGHTING EFFECTS

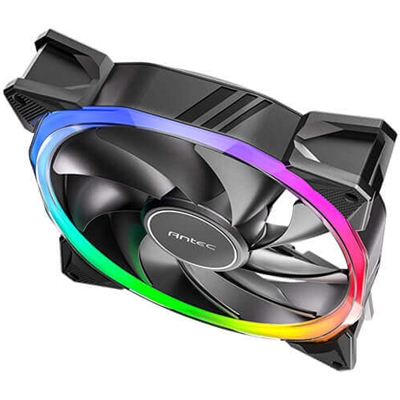

The vibrant dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.

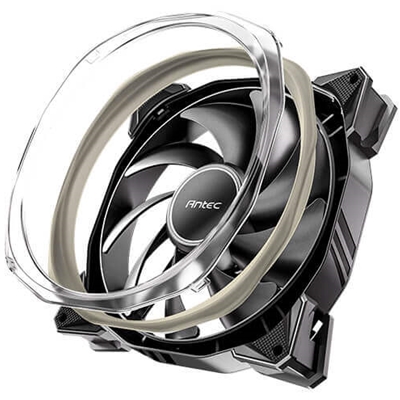

Advance Dual-Layer Design with Crystal Layer and Frosty Layer
EXOTIC TEXTURE
The well-processed fan structure and the utmost craftsmanship bring the fan quality to the next level.
ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.
Specifications
Model Name
Fusion T3 140 ARGB
Fan Type
ARGB PWM Fan
Dimensions
140 x 140 x 30 mm
Bearing Type
Hydro Bearing
Fan Speed
600±200-1500±10%RPM
Airflow
31.02~80.5 CFM (max.)
Air Pressure
0.26~1.63 mmH2O(max.)
Fan Noise Level
11.17~33.57 dB(A)
Lifespan
40,000 hours / 25?
Connector
FAN: 4-pin | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 V
Rated Current
FAN: 0.26 A | LED: 0.72 A
Warranty
2 Years
| Weight | 0.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
2 Year Return To Base Warranty
DESIGN
| Number of fan blades | 9 |
ENERGY MANAGEMENT
| Rated current | 0.26 A |
| Rated voltage | 12 V |
OTHER FEATURES
| Fan rated voltage | 6 - 13.8 V |
PERFORMANCE
| Type | Fan |
| Fan diameter | 14 cm |
| Suitable location | Computer case |
| Maximum airflow | 80.5 cfm |
| Minimum airflow (imperial) | 31.02 cfm |
| Minimum air pressure | 0.26 mmH2O |
| Maximum air pressure | 1.63 mmH2O |
| Fan speed (max) | 1500 RPM |
| Fan speed (min) | 600 RPM |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 11.17 dB |
| Fan noise level (max) | 33.57 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan's mean time to failure (MTTF) | 40000 h |
WEIGHT & DIMENSIONS
| Fan dimensions (W x D x H) | 140 x 30 x 140 mm |
