Antec Connect 120 ARGB 3-Pack 120mm PWM Fans with Daisy Chain Design and Vibration-Absorbing Pads
| Product Type | Case Fan |
| Fan Size | 120mm |
| Max Fan Speed | 1500RPM |
| Fan Shroud Colour | Black |
| LED Colour | Addressable RGB |
| Connections | 4-Pin Fan & 3-Pin ARGB |
£ 15.53
Guaranteed Safe Checkout

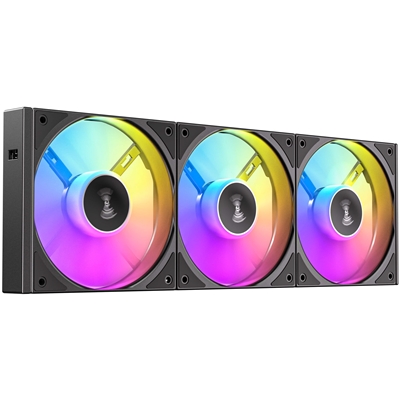

CONNECT 120 ARGB
INTUITIVE INTERLOCKING SYSTEM
Connect the fans internally with each other to streamline the installation process
3 FANS 4 SCREWS
Interlocking system helps you mount multiple fans using less screws.
EASIER INSTALLATION WITH LESS CABLES
Daisy Chain design with less cables needed.
PWM ARGB FAN
Strong and stable airflow in quiet operation.
ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.
FAN INSTALLATION
attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.
ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.
Specification
Fan Type
ARGB PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
Fan Speed
800±10%~ 1500±10% RPM
Airflow
65.08 CFM
Air Pressure
1.7 mmH2O
Fan Noise Level
28 dB(A)
Lifespan
30,000/ hrs 25°C
Connector
FAN: 4-pin PWM
LED: 3-pin
Rated Voltage
FAN: DC 12 V
LED : DC 5 V
Operation Voltage
FAN: DC 6.0-13.2 V
LED : DC 4.5-5.2 V
Rated Current
FAN: = 0.29A
LED : = 0.28A
Warranty
1 year
| Weight | 0.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
1 Year Return To Base Warranty
ENERGY MANAGEMENT
| Rated voltage | 12 V |
| LED voltage | 5 V |
PERFORMANCE
| Type | Fan |
| Mean time between failures (MTBF) | 30000 h |
| Fan diameter | 12 cm |
| Suitable location | Computer case |
| Maximum airflow | 65.08 cfm |
| Minimum air pressure | 0.45 mmH2O |
| Maximum air pressure | 1.7 mmH2O |
| Rotational speed (min) | 800 RPM |
| Bearing type | Hydraulic |
| Quantity per pack | 3 pc(s) |
| Fan noise level (min) | 19.7 dB |
| Fan noise level (max) | 28 dB |
