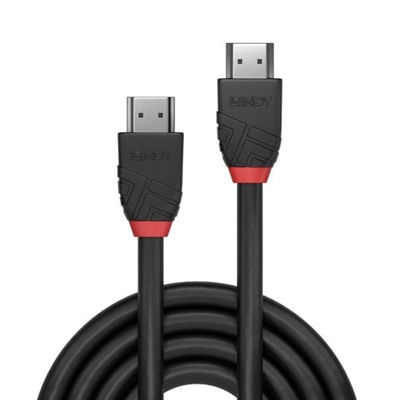

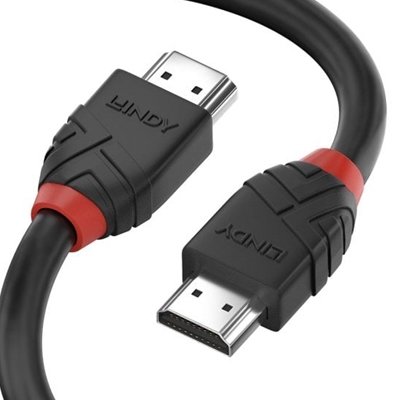

Lindy 36772 2m 8K60Hz HDMI Cable, Black Line
| Connection A | HDMI (M) |
| Connection B | HDMI (M) |
| Length | 2m |
| Colour | Black |
£ 3.68
Guaranteed Safe Checkout
Lindy 2m 8K60Hz HDMI Cable, Black Line
Key Features
Entry level High Speed HDMI 2.1 cable for home and small office applications
Supports UHD resolutions up to 7680×4320@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, gold flashed contacts
Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby® True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X;
10 year warranty
From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line 8k60hz or 4K120hz cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 7680×4320@60Hz and 3840×2160@120hz are supported. 8K Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X
The 8K Black line HDMI cable supports 48Gbps bandwidth capacity in cable lengths up to 5m.
Connectors
Connector A
HDMI Type A Male
Connector B
HDMI Type A Male
Housing Material
PVC
Connector Plating
Nickel Plating
Pin Construction
Copper Alloy
Pin Plating
Gold Plated
Dimensions (W x D x H)
20 x 34.2 x 10.9 mm (0.79 x 1.35 x 0.43 in)
Cable Construction
Length
2 m (6.56 ft)
Standard
Ultra High Speed HDMI
Colour
Black
Type
Round
Jacket Diameter
6 mm (0.24 in)
Jacket Material
PVC
Conductor Material
Copper Coated Steel
Conductor Gauge
30AWG
Shielding
Aluminum Foil
Technical Information
Supported Bandwidth
48Gbps
Maximum Resolution
7680 x 4320@60Hz 4:4:4,10bit
Nominal Attenuation
35GHz>-5.5dB(HBR1)
2.7GHz>-8.5dB(HBR2)
4.05GHz>-11.0dB(HBR3)
Minimum Bend Radius
70 mm
Operating Temperature
-10°C – 80°C (14°F – 176°F)
Storage Temperature
-20°C – 85°C (-4°F – 185°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Product Compliance
RoHS & REACH UL
| Weight | 0.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.lindy.co.uk
Warranty:
https://www.lindy.co.uk/returns-i36 Tel: 01642 754040 Fax: 01642 754049 Email: technical@lindy.co.uk
CERTIFICATION
| Certification | RoHS & REACH UL |
FEATURES
| Certification | RoHS & REACH UL |
| Cable length | 2 m |
| Cable type | Round cable |
| Data transfer rate | 48 Gbit/s |
| Product colour | Black |
| Supported graphics resolutions | 7680 x 4320 |
| HDMI version | 2.1 |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector contacts plating | Nickel |
| Maximum refresh rate | 120 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 30 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Quantity per pack | 1 pc(s) |
| RGB support | 4:4:4 |
OPERATIONAL CONDITIONS
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | -10 - 80 °C |
PACKAGING DATA
| Quantity per pack | 1 pc(s) |
WEIGHT & DIMENSIONS
| Connector 1 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
| Connector 2 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
