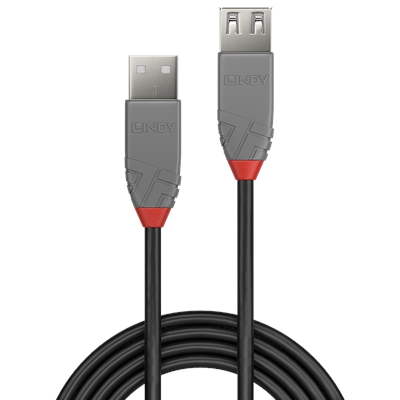

Lindy 36703 2m USB 2.0 Type A Extension Cable, Anthra Line

Lindy 2m USB 2.0 Type A Extension Cable, Anthra Line

Key Features
Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.

Connectors

Connector A
USB 2.0 Type A Male

Connector B
USB 2.0 Type A Female

Housing Material
PVC

Connector Plating
Nickel

Pin Construction
Copper

Pin Plating
24K Gold

Dimensions

USB A Male (approx.) W x D x H
15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)

USB A Female (approx.) W x D x H
17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39 in)

Cable Construction

Length
2 m (6.56 ft)

Standard
USB 2.0

Colour
Black

Type
Round

Jacket Diameter
4.4 mm (0.17 in)

Jacket Material
PVC

Conductor Material
Tinned Copper

Conductor Gauge
26/28AWG

Shielding
Aluminium Magnesium Braid

Specifications

Supported Bandwidth
480Mbps

Maximum Resolution
N/A

Nominal Attenuation
5.8db/km

Minimum Bend Radius
16 mm (0.63 in)

Operating Temperature
0°C – 60°C (32°F – 140°F)

Storage Temperature
0°C – 60°C (32°F – 140°F)

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
10

Certificated
RoHS, REACH, UL
