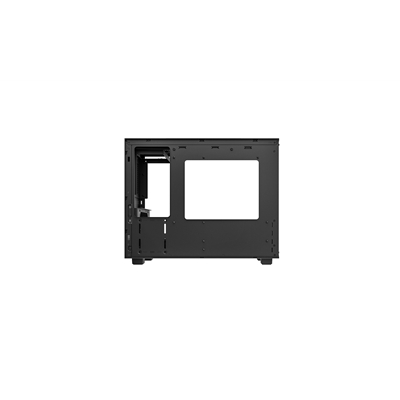

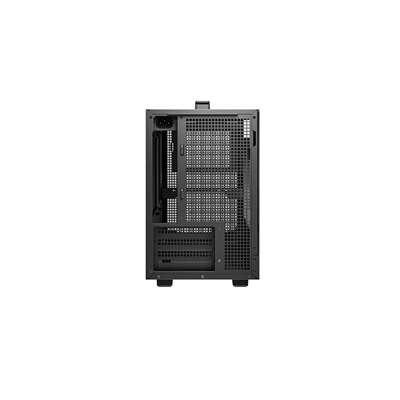

DeepCool CH160 PLUS
| Form Factor | Micro Tower |
| Motherboard Support | Micro ATX |
| PSU Included | None |
| Case Colour | Black |
| LED Colour | None |
| USB 3.0 | 2 |
| Side Panel | Tempered Glass |
£ 35.19
Guaranteed Safe Checkout
Deepcool CH160 PLUS
The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.
BUILT TO BREATH
Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.
NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
Radiators:
Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm
Fans:
Front: 1x120mm / 1x140mm (with SFX PSU)
Top: 2x120mm
Rear: 1x120mm
CPU Cooler:164mm
BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.
CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.
Specifications
Product Dimensions – 375mmx195mmx323.5mm(LxWxH)
Net Weight – 4.2Kg
Materials – ABS+SPCC+Tempered Glass
Motherboard Support – Mini-ITX / Micro-ATX
Front I/O Ports – USB3.0x2, Gen2 Type-C x1, Audio/Micx1
3.5″ Drive Bays – 1
2.5″ Drive Bays – 1+1
Expansion Slots – 4Slots
Pre-Installed Fans – None
| Weight | 3.4 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
COOLING
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Liquid cooling capability | Yes |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 120 mm |
DESIGN
| Type | PC |
| Form factor | Small Form Factor (SFF) |
| Material | Acrylonitrile butadiene styrene (ABS), Tempered glass, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 1 |
| Side window | Yes |
| Maximum CPU cooler height | 16.4 cm |
| Maximum graphics card length | 34.2 cm |
| Number of expansion slots | 4 |
| Maximum PSU length | 14 cm |
| Number of 2.5" bays | 1 |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
PORTS & INTERFACES
| USB 2.0 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
POWER SUPPLY
| Power supply location | Top |
| Power supply included | No |
| Supported power supply form factors | ATX, PS2, SFX, SFX-L |
STORAGE
| Supported HDD sizes | 2.5,3.5" |
WEIGHT & DIMENSIONS
| Weight | 4.2 kg |
| Height | 323.5 mm |
| Width | 195 mm |
| Depth | 375 mm |
