DeepCool CC560 WH Case, Gaming, White, Mid Tower, 1 x USB 3.0 / 1 x USB 2.0, Tempered Glass Side Window Panel, DeepCool Blue LED Fans, ATX, Micro ATX, Mini-ITX
| Form Factor | Mid Tower |
| Motherboard Support | ATX |
| PSU Included | None |
| Case Colour | White |
| LED Colour | Blue |
| USB 3.0 | 1 |
| Side Panel | Tempered Glass |
£ 32.50
Guaranteed Safe Checkout
CC560 WH
Mid-Tower Case
The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
ABUNDANT AIRFLOW PERFORMANCE

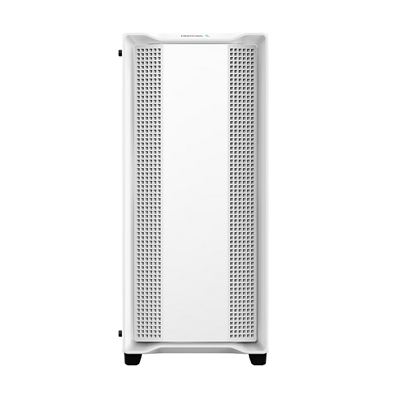

Well ventilated throughout the entire chassis, the CC560 WH sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
STORAGE SOLUTIONS
Install up to 2x 2.5″ SSDs directly on the backplate and 2x 3.5″ HDDs underneath the shroud in a removeable drive cage for adjustability.
FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.
Additional Features
– Full-sized tempered glass window
– Top panel magnetic dust filter
Form Factor
Mid Tower
Motherboard
ATX
Micro ATX
Mini-ITX
Colour
White
Materials
ABS
SPCC
Tempered Glass
Drive Bays
Internal 3.5″: 2
Internal 2.5″: 2+1
Power Supply Support
ATX PS2 (maximum length: 170mm)
I/O Panel
1 x USB 3.0
1 x USB 2.0
1 x Audio
Expansion
Slots: 7
Cooling Fans Compatibility

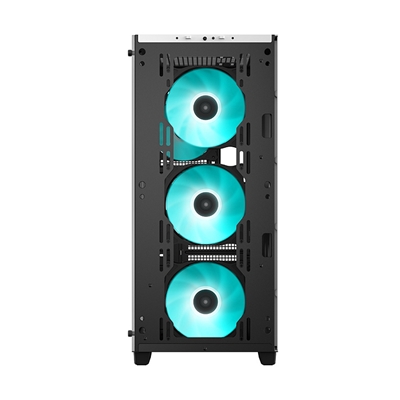

Front: 3 x 120mm / 2 x 140mm (3 x 120mm LED fan installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm LED fan installed)
Liquid Cooler Compatibility
Front: 120 / 140 / 240 / 280 / 360
Top: 120 / 240
Rear: 120
Clearances
CPU Cooler Height Limit: 163mm
VGA Length Limit: 370mm
PSU Length Limit: 170mm
Product Dimensions ( L x W x H )
416mm x 210mm x 477mm
Weight
Net: 5.25KG
| Weight | 6.4 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
COOLING
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Number of bottom fans supported (max) | 2 |
| Rear fans installed | 1x 120 mm |
| Rear radiator fan sizes supported | 120 mm |
| Front radiator fan sizes supported | 140,240,360,120,280 mm |
| Top radiator fan sizes supported | 120,240,140 mm |
DESIGN
| Type | PC |
| Form factor | Midi Tower |
| Material | ABS, SPCC, Tempered glass |
| LED indicators | Yes |
| Product colour | White |
| Illumination | Yes |
| Cable management | Yes |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Anti-dust filter | Yes |
| Number of 3.5" bays | 2 |
| Illumination colour | Blue |
| Suitable for | Gaming |
| Side window | Yes |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 37 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 17 cm |
| Illumination location | Case fans |
| Number of 2.5" bays | 3 |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| RGB control button | Yes |
PORTS & INTERFACES
| USB 2.0 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
POWER SUPPLY
| Power supply location | Bottom |
| Power supply included | No |
| Supported power supply form factors | ATX |
STORAGE
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
WEIGHT & DIMENSIONS
| Weight | 7.2 kg |
| Height | 483 mm |
| Width | 215 mm |
| Depth | 432 mm |
