Antec FLUX M Mini Tower PC Case – Tempered Glass, Steel/Plastic, 6 PWM Fans, USB-C, Mirco-ATX/ITX Compatibility
| Form Factor | Micro Tower |
| Motherboard Support | ATX |
| PSU Included | None |
| Case Colour | Black |
| LED Colour | None |
| USB 3.0 | 1 |
| Side Panel | Tempered Glass |
£ 49.98
Guaranteed Safe Checkout

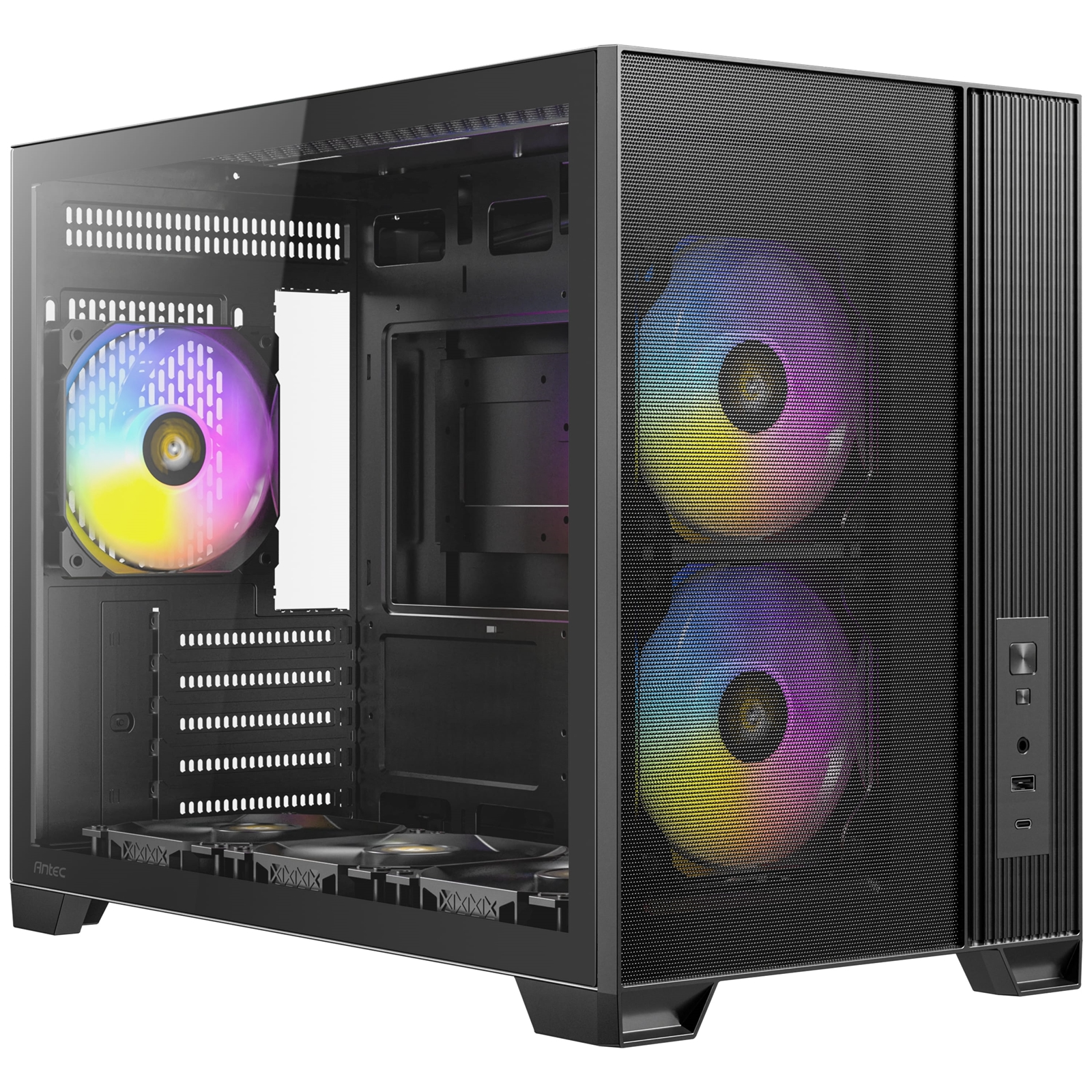

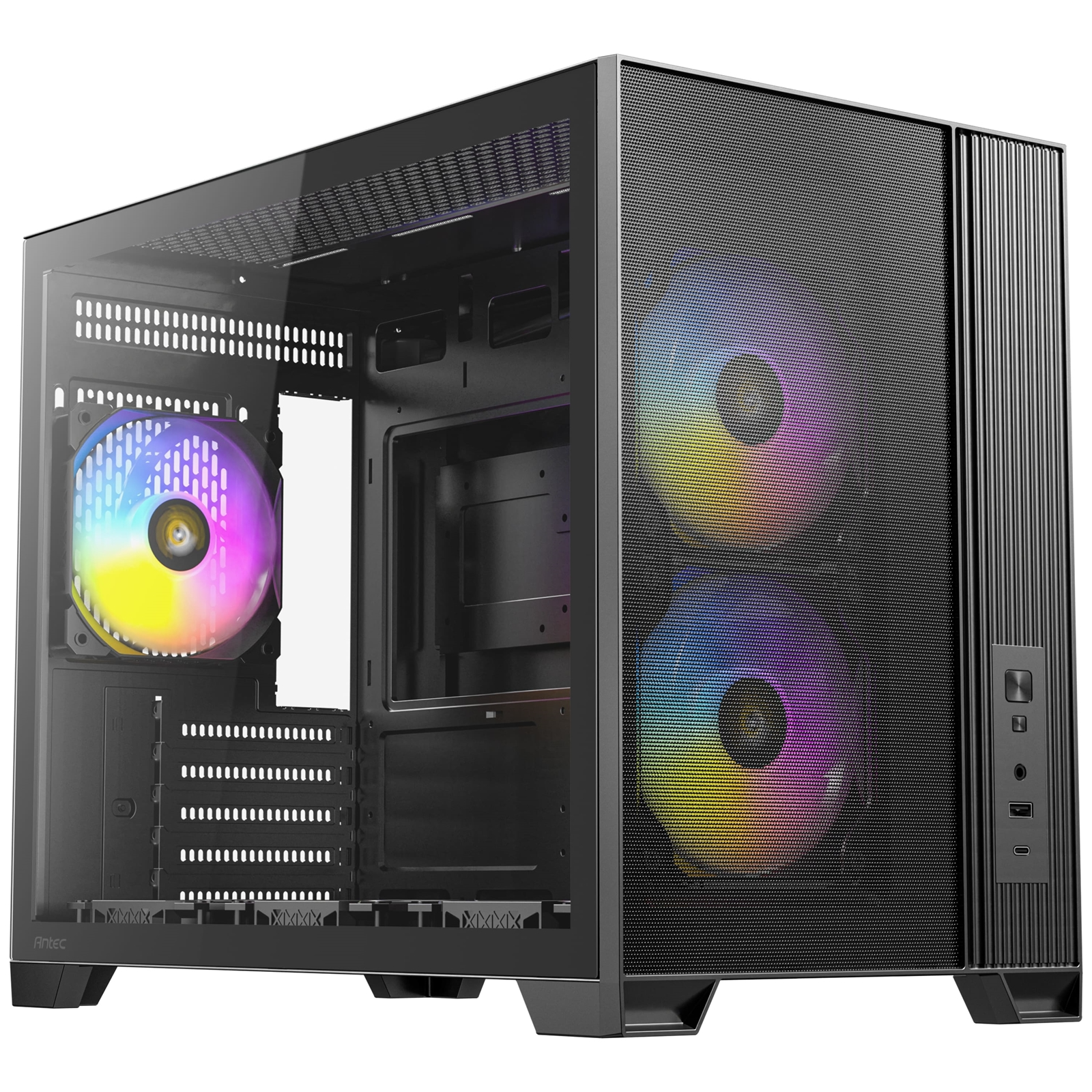

Antec Flux M Mini Tower PC Case
Features
Airflow
F-LUX Platform with vertical airflow design accelerates heat exhaust from bottom to top.
Pre-installed fans include 2 x 120mm ARGB PWM fans at the front, 3 x 120mm reverse PWM fans, and 1 x 120mm ARGB PWM fan at the rear.
Supports up to a 360mm radiator at the top.
-0mm clearance between GPU and bottom fans ensures optimal airflow circulation.
Appearance

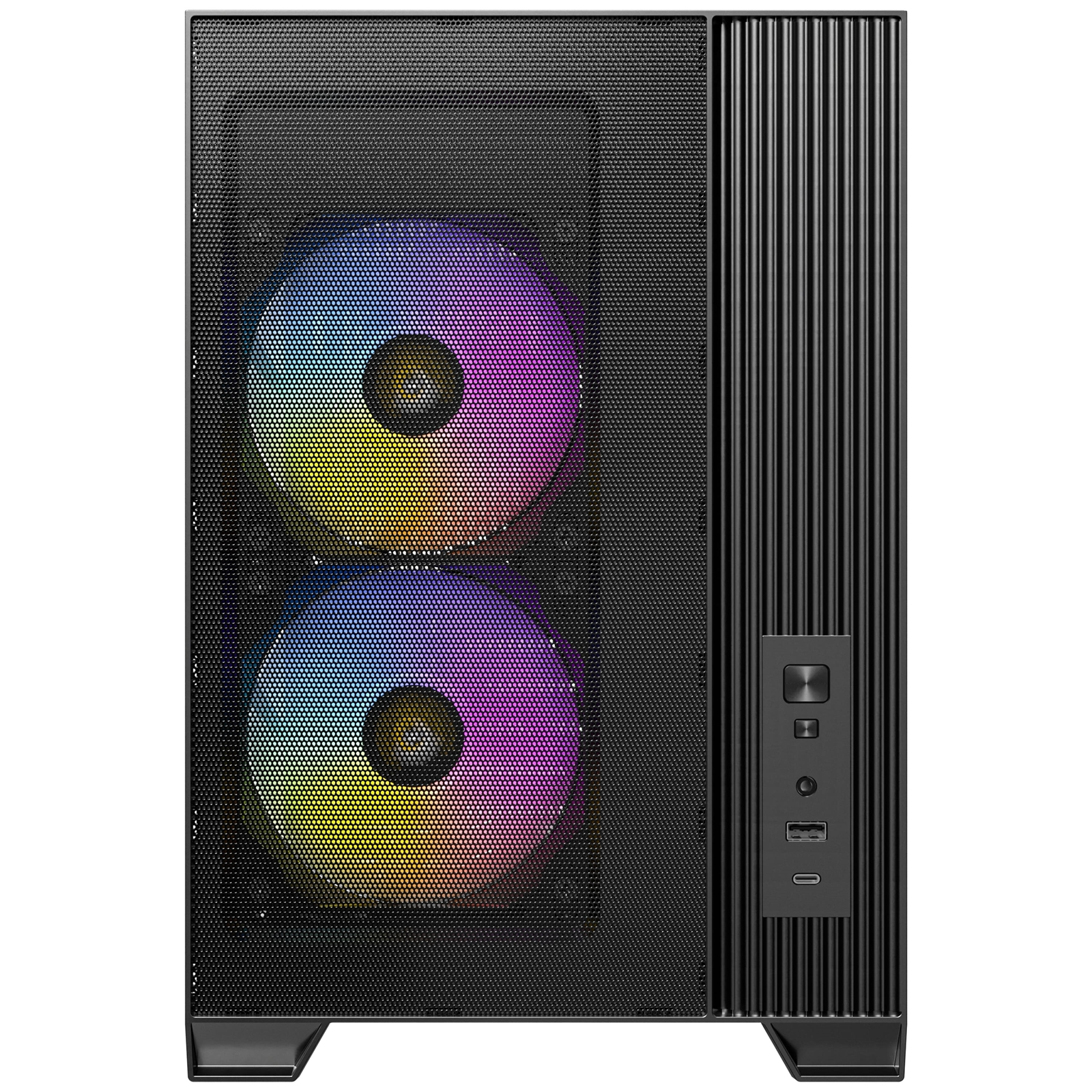

Large front panel mesh for enhanced cooling.
Functionality

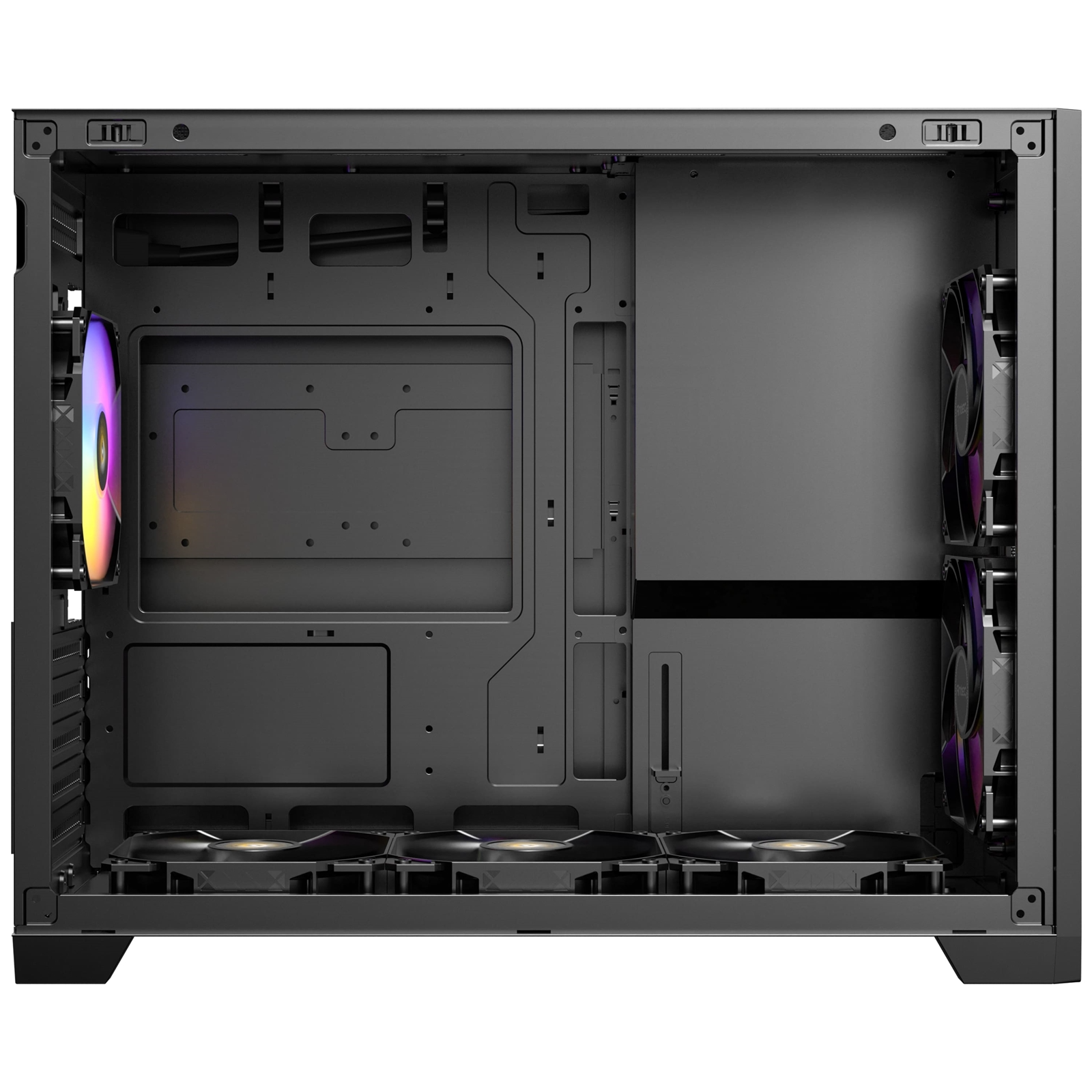

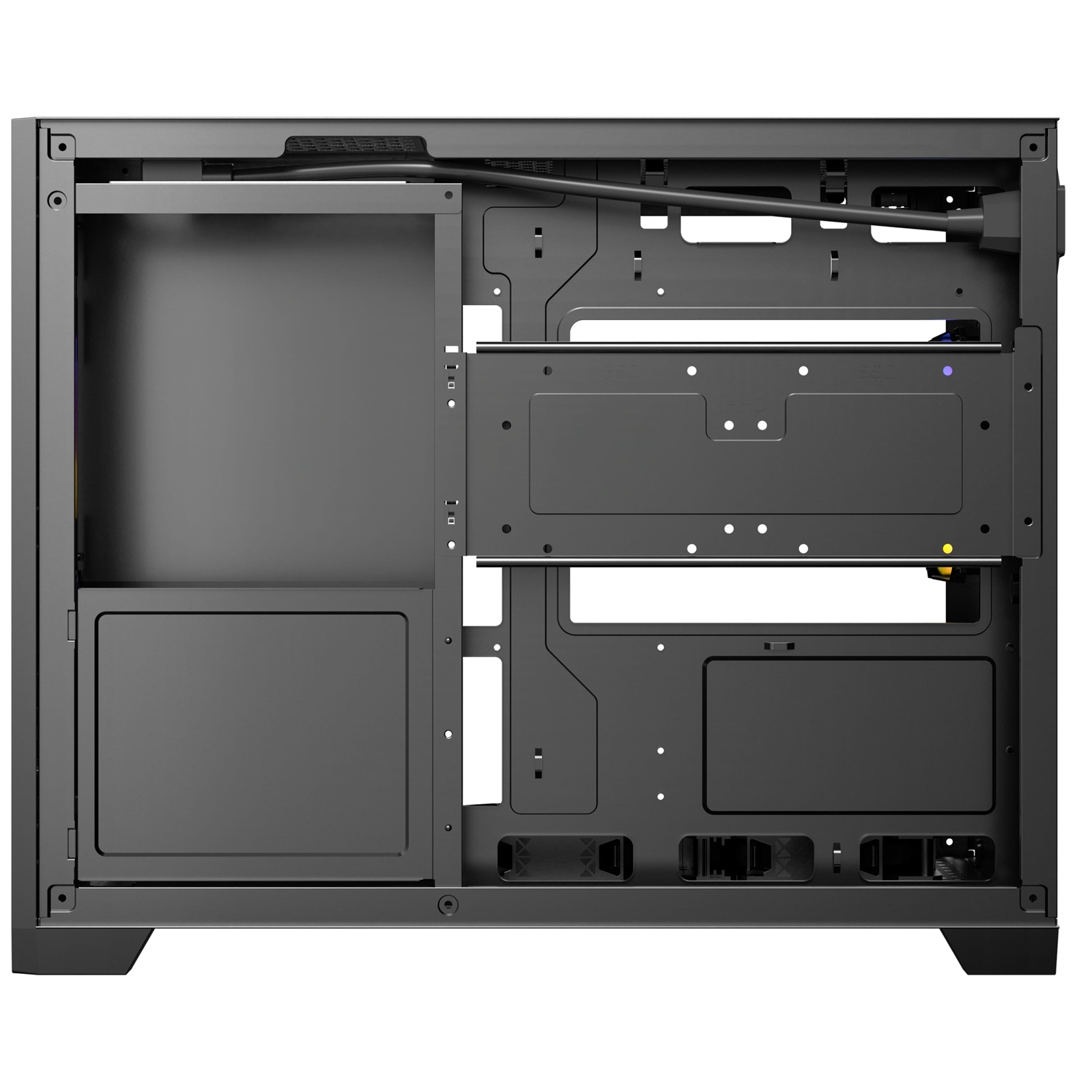

Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.
Equipped with a 13A extension cable for stable power delivery and support for high-wattage PSUs.
Specifications
Dimensions
459 x 247 x 365mm (DWH)
Form Factor
Mini Tower
Materials
Steel + Plastic
Mainboard Support
Micro-ATX , ITX
Front Access & Controls
Power, Reset , USB3.0 x 1, Type-C 3.2 Gen 2 (10 Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
3mm Tempered Glass
Drive Bays
Expansion Slots 5
3.5″ / 2.5″ 2 / 2
Fan Support
Front 2 x 120mm
Top 3 x 120mm
Bottom 3 x 120mm
Rear 1 x 120mm
Included Fan(s) 2 x 120mm ARGB PWM fans at the front + 3 x 120mm PWM reverse fans at the bottom + 1 x 120mm ARGB PWM fan at the rear
Radiator Support
Top 120 / 240 / 360mm
Rear 120mm
Clearance
Max GPU Length =405mm
Max CPU Cooler Height =175mm
Max PSU Length (Cable not included)=160mm
Miscellaneous
Dust Filter Top / Bottom
Net Weight 6.35 Kg
Gross Weight 7.41 Kg
Warranty 2 Years
| Weight | 6.35 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
2 Year Return To Base Warranty
COOLING
| Top fans diameters supported | 120 mm |
| Bottom fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Number of bottom fans supported (max) | 3 |
| Rear fans installed | 1x 120 mm |
| Bottom fans installed | 3x 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 120,240,360 mm |
DESIGN
| Type | PC |
| Form factor | Micro Tower |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Illumination | Yes |
| Cable management | Yes |
| Reset button | Yes |
| Supported motherboard form factors | ITX, micro ATX |
| Anti-dust filter | Yes |
| Number of 3.5" bays | 2 |
| Illumination colour | Multi |
| Suitable for | Gaming |
| Side window | Yes |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40.5 cm |
| Number of expansion slots | 5 |
| Maximum PSU length | 16 cm |
| Illumination location | Case fans |
| Number of 2.5" bays | 2 |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
PACKAGING DATA
| Package weight | 7.41 kg |
PORTS & INTERFACES
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
POWER SUPPLY
| Power supply location | Side |
| Power supply included | No |
STORAGE
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
TECHNICAL DETAILS
| Warranty period | 2 year(s) |
WEIGHT & DIMENSIONS
| Weight | 6.35 kg |
| Height | 365 mm |
| Width | 247 mm |
| Depth | 459 mm |
