Gigabyte H610M S2H V3 DDR4 LGA1700 Micro-ATX Motherboard M.2 GbE
| Socket | 1700 |
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel H610 |
| Form Factor | Micro ATX |
| Memory Slots | DDR4 - 2 Slots |
| M.2 Compatibility | PCIe 3 |
| USB C Header | No |
£48.59
Guaranteed Safe Checkout

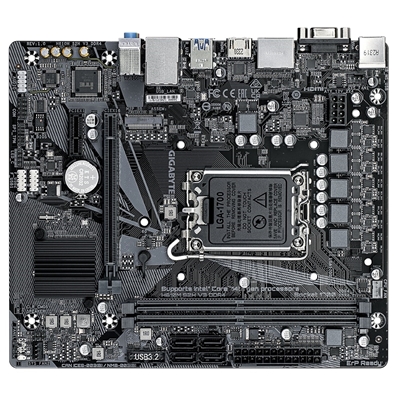

Gigabyte H610M S2H V3 DDR4 Motherboard Overview
The Gigabyte H610M S2H V3 DDR4 is a reliable Micro-ATX motherboard designed for Intel 14th, 13th, and 12th Generation processors. Built on the Intel H610 chipset, it delivers dependable performance for everyday computing, office workloads, home systems, and entry-level gaming builds. With support for DDR4 memory, PCIe 4.0 graphics, NVMe M.2 storage, and multiple display outputs, the Gigabyte H610M S2H V3 DDR4 offers a balanced platform for users seeking stability, connectivity, and upgrade flexibility.
Designed with a 4+1+1 Hybrid Digital VRM solution, solid power connectors, and Smart Fan 6 cooling technology, the motherboard ensures efficient power delivery and thermal management during demanding workloads. Features such as GbE LAN with bandwidth management, high-quality audio capacitors, Audio Noise Guard, Anti-Sulfur Resistors, and PCIe 4.0 readiness further enhance the overall user experience.
Key Features of Gigabyte H610M S2H V3 DDR4
Intel LGA1700 Processor Support
- Supports Intel Core 14th, 13th, and 12th Generation processors
- Compatible with Intel Pentium Gold and Celeron processors
- Intel H610 Express Chipset
4+1+1 Hybrid Digital VRM Design
- 4+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors for improved power stability
- 8-pin Solid Pin CPU power connector
- Enhanced thermal performance and stable CPU operation
DDR4 Memory Support
- 2 x DDR4 DIMM slots
- Supports up to 64GB system memory
- Single DIMM capacity up to 32GB
- Dual-channel memory architecture
- Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s
- Supports XMP memory modules
- ECC and Non-ECC Unbuffered DIMM support
PCIe 4.0 Expansion
- 1 x PCIe 4.0 x16 slot
- PCIe 4.0 Ready PCB design
- Ideal for modern graphics cards and expansion devices
High-Speed NVMe Storage
- 1 x PCIe 3.0 x4 M.2 connector
- Supports Socket 3 M-Key SSDs
- Supports 2260 and 2280 form factors
- 4 x SATA 6Gb/s ports
Multiple Display Outputs
- 2 x DisplayPort
- 1 x HDMI
- 1 x D-Sub
- Supports multi-display productivity setups
- Up to 4K display output support
Smart Fan 6 Cooling Technology
- 3 PWM/DC fan headers
- 4 internal temperature sensors
- Hybrid fan header support
- Fan Stop functionality
- Precision fan curve control
- Water cooling pump support up to 24W
Networking
- Realtek Gigabit Ethernet LAN
- GbE LAN with bandwidth management
- Optimized network responsiveness
Premium Audio Experience
- Realtek HD Audio CODEC
- 2/4/5.1/7.1-channel audio support
- High-quality audio capacitors
- Audio Noise Guard technology
Durability Features
- Anti-Sulfur Resistors Design
- Solid Pin Power Connectors
- High-quality PCB construction
- Enhanced surge resistance and reliability
Easy BIOS Management
- Modern graphical BIOS interface
- Q-Flash support
- EasyTune utility
- Smart Backup
- System Information Viewer
Specifications
CPU
- LGA1700 socket
- Supports Intel Core 14th Generation Processors
- Supports Intel Core 13th Generation Processors
- Supports Intel Core 12th Generation Processors
- Supports Intel Pentium Gold Processors
- Supports Intel Celeron Processors
Chipset
- Intel H610 Express Chipset
Memory
- 2 x DDR4 DIMM Slots
- Maximum Capacity: 64GB
- Dual Channel Architecture
- Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s
- Supports ECC Un-buffered DIMMs (Non-ECC mode)
- Supports Non-ECC Un-buffered DIMMs
- Supports XMP Memory Modules
Graphics
- Intel Integrated Graphics Support
- 1 x D-Sub Port (1920 x 1200 @ 60Hz)
- 1 x HDMI Port (4096 x 2160 @ 60Hz)
- 2 x DisplayPort (4096 x 2304 @ 60Hz)
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
LAN
- Realtek GbE LAN
- 10/100/1000 Mbps Ethernet
Expansion Slots
- 1 x PCIe 4.0 x16 Slot
- 1 x PCIe 3.0 x1 Slot
Storage
- 1 x M.2 PCIe 3.0 x4/x2 Connector
- 4 x SATA 6Gb/s Ports
USB Ports
- 4 x USB 3.2 Gen 1 Ports
- 8 x USB 2.0/1.1 Ports
Internal Connectors
- 24-pin ATX Power Connector
- 8-pin CPU Power Connector
- CPU Fan Header
- 2 x System Fan Headers
- RGB LED Header
- TPM Header
- Front Panel Header
- Front Panel Audio Header
- USB 3.2 Gen 1 Header
- 2 x USB 2.0 Headers
- Serial Port Header
- Chassis Intrusion Header
- Clear CMOS Jumper

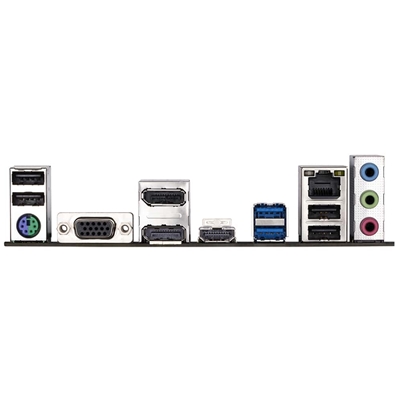

Rear I/O Ports
- 1 x PS/2 Keyboard/Mouse Port
- 1 x D-Sub Port
- 2 x DisplayPort
- 1 x HDMI Port
- 2 x USB 3.2 Gen 1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 3 x Audio Jacks
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro-ATX
- 22.3cm x 19.3cm
Why Choose Gigabyte H610M S2H V3 DDR4 at Prodisk IT?
The Gigabyte H610M S2H V3 DDR4 is an excellent choice for users building a dependable Intel-based system with support for the latest LGA1700 processors. Its PCIe 4.0 graphics slot, NVMe M.2 storage support, Smart Fan 6 cooling controls, multiple display outputs, and durable Ultra Durable design make it suitable for office productivity, home computing, and entry-level gaming setups. At Prodisk IT, you get genuine products, competitive pricing, and reliable customer support for your PC building needs.
| Weight | 0.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3-Year Return-To-Base Warranty
Warranty Length: 3 years
Warranty Type:Return-To-Base
Warranty Coverage: Gigabyte’s 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target – a proof of end-user purchase WILL be required.
Warranty Instructions: RESELLERS – please raise a Target RMA.
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
Warranty Contact: Gigabyte Returns
BACK PANEL I/O PORTS
| Headphone outputs | 3 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
BATTERY
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
BIOS
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
EXPANSION SLOTS
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
FEATURES
| Motherboard chipset | Intel H610 Express |
| Motherboard form factor | micro ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Cooling type | Active |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
GRAPHICS
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
INTERNAL I/O
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 1 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
LOGISTICS DATA
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
MEMORY
| Maximum internal memory | 64 GB |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 3200 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
NETWORKING
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
PACKAGING CONTENT
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Cables included | SATA |
| Batteries included | Yes |
PACKAGING DATA
| Package weight | 774 g |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package width | 265 mm |
PROCESSOR
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
STORAGE CONTROLLERS
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
TECHNICAL DETAILS
| Warranty period | 3 year(s) |
WEIGHT & DIMENSIONS
| Height | 35 mm |
| Width | 223 mm |
| Depth | 193 mm |
