ASRock H610M-HDV/M.2+ D5 LGA1700 DDR5 Micro-ATX Motherboard USB-C

ASRock H610M-HDV/M.2+ D5 LGA1700 Micro-ATX Motherboard DDR5 1x M.2 USB-C

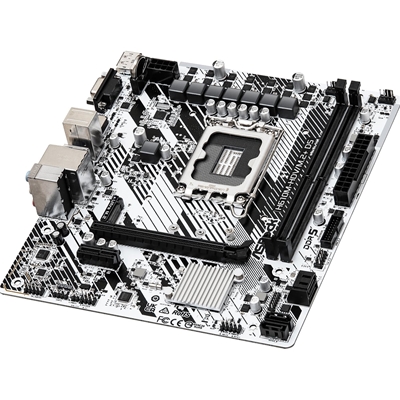

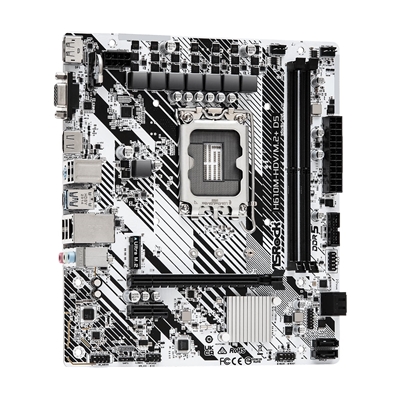

The ASRock H610M-HDV M.2 D5 LGA1700 motherboard is designed for users looking for reliable DDR5 performance, fast storage connectivity, and stable everyday computing. Built for Intel® 13th Gen, 12th Gen, and next-generation Intel® Core™ processors, this Micro-ATX motherboard combines productivity, gaming-ready features, and modern connectivity in a compact design.

With support for high-speed DDR5 memory, PCIe Gen3 Ultra M.2 storage, USB 3.2 Gen1 Type-C, and multiple display outputs, the ASRock H610M-HDV M.2 D5 LGA1700 delivers dependable performance for gaming, office setups, and home PC builds.

Key Features of ASRock H610M-HDV M.2 D5 LGA1700

• Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)
• 6+1+1 Power Phase Design
• Dual Channel DDR5 Memory Support
• Supports DDR5 Memory up to 5600MHz
• PCIe 4.0 x16 Slot
• Ultra M.2 32Gb/s (PCIe Gen3 x4)
• USB 3.2 Gen1 Type-C
• HDMI 4K @60Hz Support
• DisplayPort + HDMI + D-Sub Graphics Outputs
• Realtek ALC897 7.1 Channel HD Audio
• Gigabit LAN Connectivity
• POLYCHROME RGB Support
• ASRock Auto Driver Installer
• Compact Micro-ATX Form Factor

6+1+1 Power Phase Design

The motherboard features a durable 6+1+1 power phase design that provides stable and smooth power delivery to the CPU. This helps improve overall system stability and ensures reliable performance during gaming, multitasking, and daily workloads.

DDR5 Memory Performance

The ASRock H610M-HDV M.2 D5 LGA1700 supports the latest DDR5 memory technology, allowing users to experience faster data transfer speeds, improved efficiency, and enhanced system responsiveness.

Memory Specifications

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory
• 13th Gen Intel® Core™ Processors support DDR5 up to 5600
• 12th Gen Intel® Core™ Processors support DDR5 up to 4800
• Maximum system memory capacity: 96GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

Ultra M.2 Storage Solution

The Ultra M.2 interface supports PCIe Gen3 x4 SSDs with data transfer speeds up to 32Gb/s. This allows for faster boot times, quicker application loading, and improved overall system responsiveness.

Storage Specifications

• 1 x Ultra M.2 Socket (M2_1, Key M)
• Supports Type 2242/2260/2280 PCIe Gen3x4 SSDs
• 4 x SATA3 6.0 Gb/s Connectors
• Supports NVMe SSD as boot disks

Advanced Graphics Output Support

This motherboard provides multiple graphics output options, including HDMI, DisplayPort, and D-Sub, making it suitable for modern monitors and multi-display environments.

Graphics Features

• Intel® Xe Graphics Architecture (Gen 12)
• HDMI 2.1 supports up to 4K 60Hz
• DisplayPort 1.4 supports up to 8K 60Hz / 5K 120Hz
• D-Sub supports Full HD 1920×1080 resolution
• HDMI 4K @60Hz support for a smoother visual experience

Supported only with processors featuring integrated graphics.

POLYCHROME RGB Customization

The motherboard includes an addressable RGB header compatible with RGB strips, CPU coolers, chassis fans, and additional RGB accessories. Users can synchronize lighting effects using ASRock Polychrome SYNC.

RGB Features

• Addressable RGB Header Support
• Supports WS2812B RGB LED Strips
• Maximum power rating up to 3A (5V)
• Supports up to 80 LEDs within 2 meters

USB 3.2 Gen1 Type-C Connectivity

The rear USB 3.2 Gen1 Type-C port provides high-speed data transfer rates up to 5Gbps and supports modern USB devices with a reversible connector design.

USB Connectivity

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 3 x USB 3.2 Gen1 Type-A
• 6 x USB 2.0 Ports
• All USB ports support ESD Protection

Audio and Networking

Audio

• Realtek ALC897 7.1 Channel HD Audio Codec
• High-definition audio support for immersive sound quality

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H LAN Controller

Expansion Slots

CPU

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

Chipset

• 1 x PCIe 3.0 x1 Slot (PCIE2)
• Supports NVMe SSD as boot disks

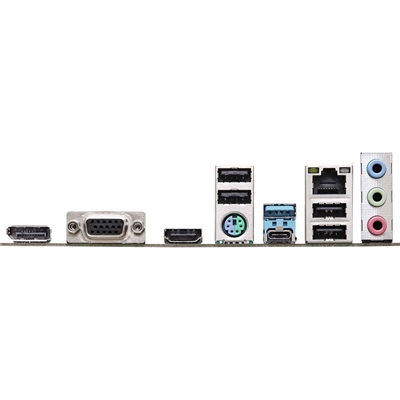

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 1 x USB 3.2 Gen1 Type-A Port
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Internal Connectors

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x Addressable LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis/Water Pump Fan Connector (4-pin)
• 1 x 24-pin ATX Power Connector
• 1 x 8-pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header
• 1 x USB 3.2 Gen1 Header

Software and UEFI Features

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN
• ASRock Polychrome SYNC

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Form Factor and OS Support

Form Factor

• Micro ATX Form Factor
• Dimensions: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS Support

• Microsoft® Windows® 10 64-bit
• Microsoft® Windows® 11 64-bit

Certifications

• FCC
• CE
• ErP/EuP Ready
