DeepCool LS520S Zero Dark All In One Liquid CPU Cooler, 240mm Radiator, 2 x 120mm Deepcool Fans, Intel/AMD
| Product Type | Liquid CPU Cooler |
| Radiator Colour | Black |
| Max Fan Speed | 2250RPM |
| Radiator Size | 240mm |
| LED Colour | None |
£53.50
Guaranteed Safe Checkout
DeepCool LS520S Zero Dark, High-Performance Liquid CPU Cooler
Embrace the darkness with the DeepCool LS520S Zero Dark, a premium liquid cooling solution designed for high-end CPUs. This cooler emphasizes the core components of your system, offering powerful cooling without RGB distractions. The DeepCool LS520S Zero Dark is perfect for gamers and PC enthusiasts seeking a minimalist, high-performance build.
Built Strong for Durability
The DeepCool LS520S Zero Dark features an aluminum pump housing for rigidity and a pristine appearance. The large pump cover is rotatable and easy to adjust, providing both style and functionality.
Highly Efficient Fans
Equipped with three optimized PWM fans, the DeepCool LS520S Zero Dark delivers whisper-quiet operation and excellent cooling performance. The long-life Hydro bearing ensures durability, making this cooler reliable for long-term usage.
Simplified Installation
The DeepCool LS520S Zero Dark includes all necessary mounting hardware for an easy installation process. Compatible with both Intel and AMD platforms, it ensures proper contact and even pressure for optimal cooling performance.
Technical Specifications

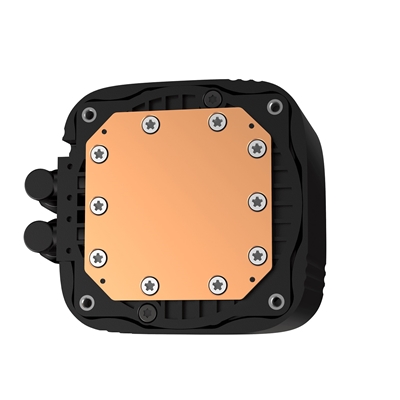

Pump
- Dimensions: 85 x 73 x 55 mm (L x W x H)
- Speed: 3100 RPM ±10%
- Noise: 19 dB(A)
- Connector: 3-pin
- Voltage: 12 VDC
- Current: 0.5 A
- Power Consumption: 6 W

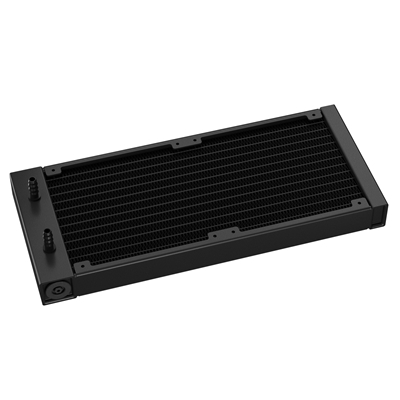

Radiator
- Dimensions: 282 x 120 x 27 mm (L x W x H)
- Material: Aluminum
- Tube Length: 410 mm
Fans
- Quantity: 3 x 120mm PWM
- Speed: 500~2250 RPM ±10%
- Airflow: 85.85 CFM
- Pressure: 3.27 mmAq
- Noise: 32.9 dB(A)
- LSP Mode: 500~1600 RPM, 60.85 CFM, 1.65 mmAq, 28.2 dB(A)
- Bearing Type: Hydro Bearing
- Voltage: 12 VDC
- Current: 0.25 A
- Power: 3.0 W
- LED: White
Additional Info
- EAN: 6933412728429
- P/N: R-LS520-BKNNMM-G-1
- Net Weight: 1346 g
The DeepCool LS520S Zero Dark combines high performance, minimalistic design, and long-term reliability, making it the ideal cooler for modern high-end systems.
| Weight | 1.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
DESIGN
| Radiator material | Aluminum |
| Illumination LED | Yes |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Pump voltage | 12 V |
| Pump current | 470 mA |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Fan power consumption | 3.48 W |
| Pump power consumption | 5.64 W |
| LED voltage | 5 V |
| LED power consumption (pump) | 2.2 W |
| LED power consumption (fan) | 3.6 W |
OTHER FEATURES
| Country of origin | China |
PERFORMANCE
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Suitable location | Processor |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Noise level (high speed) | 32.9 dB |
| Rotational speed (max) | 2250 RPM |
| Rotational speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 19 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 500 RPM |
| Fan 2 rotational speed (max) | 2250 RPM |
| Fan 2 noise level (high speed) | 32.9 dB |
| Fan 2 maximum airflow | 85.85 cfm |
| Fan 2 maximum air pressure | 3.27 mmH2O |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.08 kg |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump width | 8.6 cm |
| Pump depth | 7.4 cm |
| Pump height | 5.7 cm |
