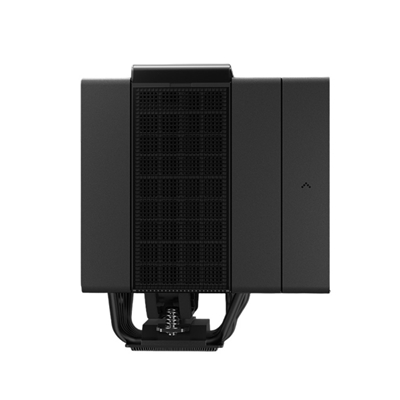

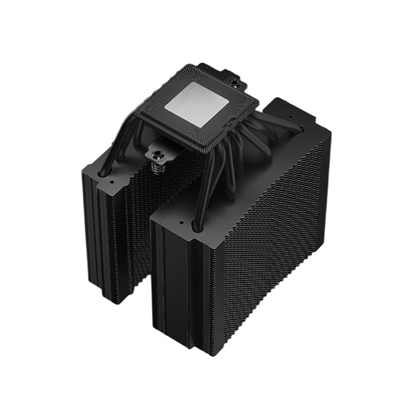

DeepCool Assassin IV VC Vision Dual-Fan CPU Air Cooler with 140mm & 120mm Fans, Vapour Chamber Base, Digital Display for Real-Time Monitoring, Intel & AMD Compatible
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1800RPM |
| LED Colour | None |
£97.02
Guaranteed Safe Checkout
DeepCool Assassin IV VC Vision, Elite Air Cooling for High-Performance CPUs
The DeepCool Assassin IV VC Vision is a high-performance CPU air cooler designed for both Intel and AMD systems. Combining advanced cooling technologies, a vapour chamber base, and dual-fan configuration, this cooler delivers optimal thermal management for enthusiasts and high-end PC builds.
Unmatched Cooling with Vapour Chamber Technology
Engineered for peak CPU performance, the DeepCool Assassin IV VC Vision uses a vapour chamber base for efficient heat transfer. Whether for gaming, content creation, or overclocking, this cooler maintains low temperatures while ensuring system stability.
Dual-Fan Configuration for Maximum Airflow
The DeepCool Assassin IV VC Vision features a 140mm and 120mm fan setup that provides superior airflow and pressure, ensuring every corner of the heatsink is effectively cooled. Both fans operate quietly even at full speed, offering a perfect balance between cooling and noise control.
- 140mm Fan: 500–1800 RPM (Performance), 500–1450 RPM (Quiet)
- 120mm Fan: 500–1700 RPM (Performance), 500–1350 RPM (Quiet)
- Advanced fluid dynamic bearing technology for smooth and durable operation
Interactive Quad-Segmented Digital Display
Stay informed with the DeepCool Assassin IV VC Vision’s integrated digital display. The quad-segmented screen provides real-time monitoring of CPU temperature, usage, and system statistics. Fully customizable through DeepCool software, it enhances both performance tracking and aesthetic appeal.
Broad Socket Compatibility
The DeepCool Assassin IV VC Vision supports a wide range of Intel and AMD sockets, making it ideal for modern builds and future upgrades:
- Intel: LGA2066, 2011-v3, 2011, 1700, 1200, 115x series
- AMD: AM5, AM4
Why Choose Prodiskit for DeepCool Assassin IV VC Vision?
- Guaranteed genuine DeepCool products
- Fast and secure shipping worldwide
- Expert customer support for installation guidance
- Easy returns and warranty support
Check out more of our CPU cooling solutions: DeepCool CPU Coolers
Technical Specifications
Product Dimensions: 147 x 144 x 172 mm (L x W x H)
Heatsink Dimensions: 140 x 110 x 160 mm (L x W x H)
Net Weight: 1780 g
Heatpipes: 7 x 6 mm
Fan Specifications:
- 140mm Fan:
- Speed: 500–1800 RPM (Performance), 500–1450 RPM (Quiet)
- Airflow: 61.25 CFM (Performance), 48.55 CFM (Quiet)
- Air Pressure: 3.76 mmAq / 2.46 mmAq
- Noise Level: 29.3 dB(A) / 22.6 dB(A)
- 120mm Fan:
- Speed: 500–1700 RPM (Performance), 500–1350 RPM (Quiet)
- Airflow: 58.06 CFM / 46.75 CFM
- Air Pressure: 2.1 mmAq / 1.35 mmAq
- Noise Level: 29.3 dB(A) / 22.6 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Rated Voltage: 12 VDC
Power Consumption: 4.8 W (Performance), 3.6 W (Quiet)
Display Module:
- Rated Voltage: 5 VDC
- Rated Current: 0.08 A ±10%
- Power Consumption: 0.4 W
- Display Area: 44.6 x 53.6 mm
| Weight | 1.78 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
DESIGN
| Number of heat pipes | 7 |
ENERGY MANAGEMENT
| Power consumption (typical) | 4.8 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Thermal Design Power (TDP) | 300 W |
| Rated voltage | 12 V |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 120/140 mm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066 |
| Suitable location | Processor |
| Maximum airflow | 61.25 cfm |
| Maximum air pressure | 3.76 mmH2O |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 29.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 maximum airflow | 58.06 cfm |
| Fan 2 maximum air pressure | 2.1 mmH2O |
WEIGHT & DIMENSIONS
| Weight | 1.78 kg |
| Height | 172 mm |
| Width | 147 mm |
| Depth | 144 mm |
| Radiator width | 14 cm |
| Radiator depth | 11 cm |
| Radiator height | 16 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
