DeepCool AN600 Low-Profile CPU Cooler, 1x 120mmPWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD
| Product Type | Low-Profile Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1850RPM |
| LED Colour | White |
£39.53
Guaranteed Safe Checkout

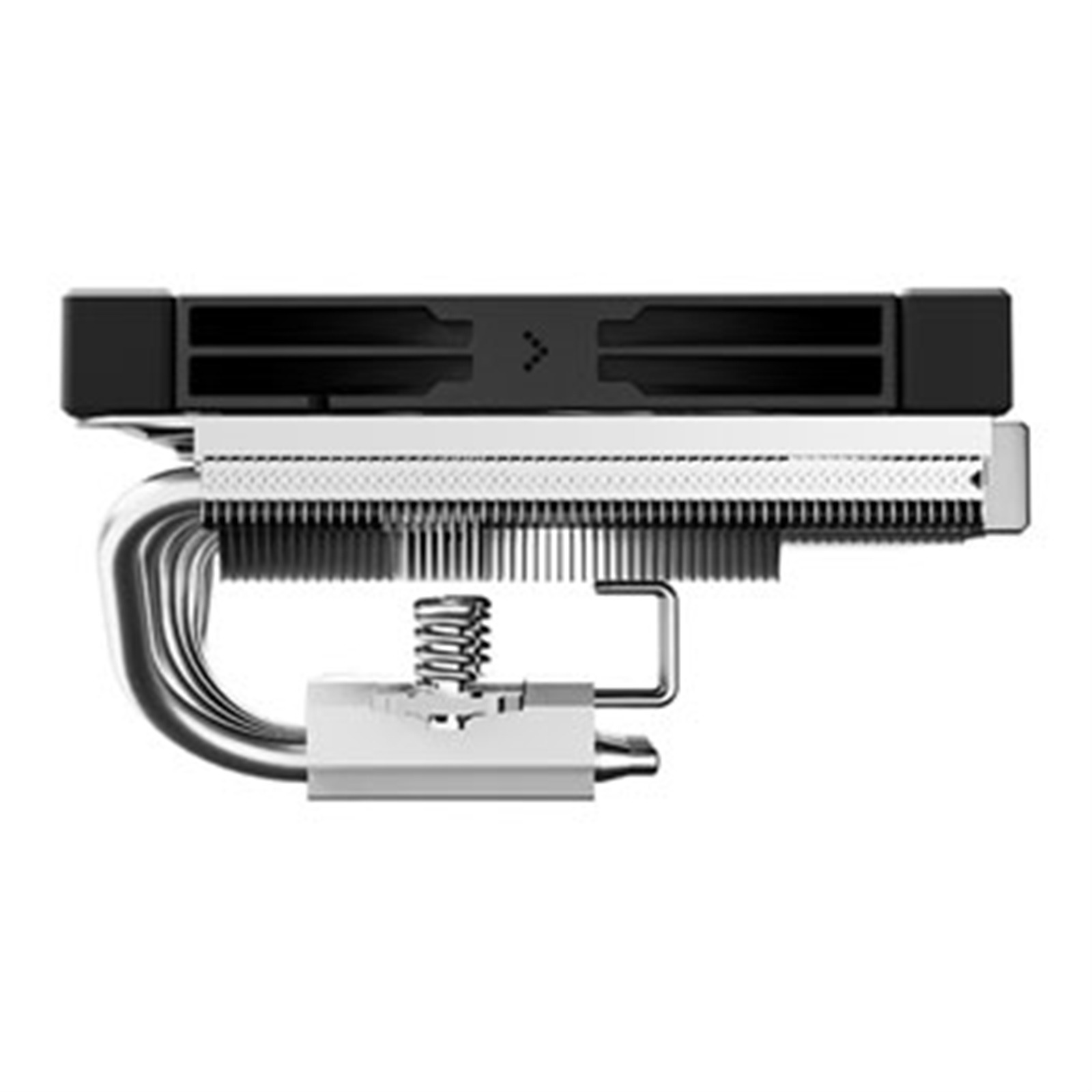

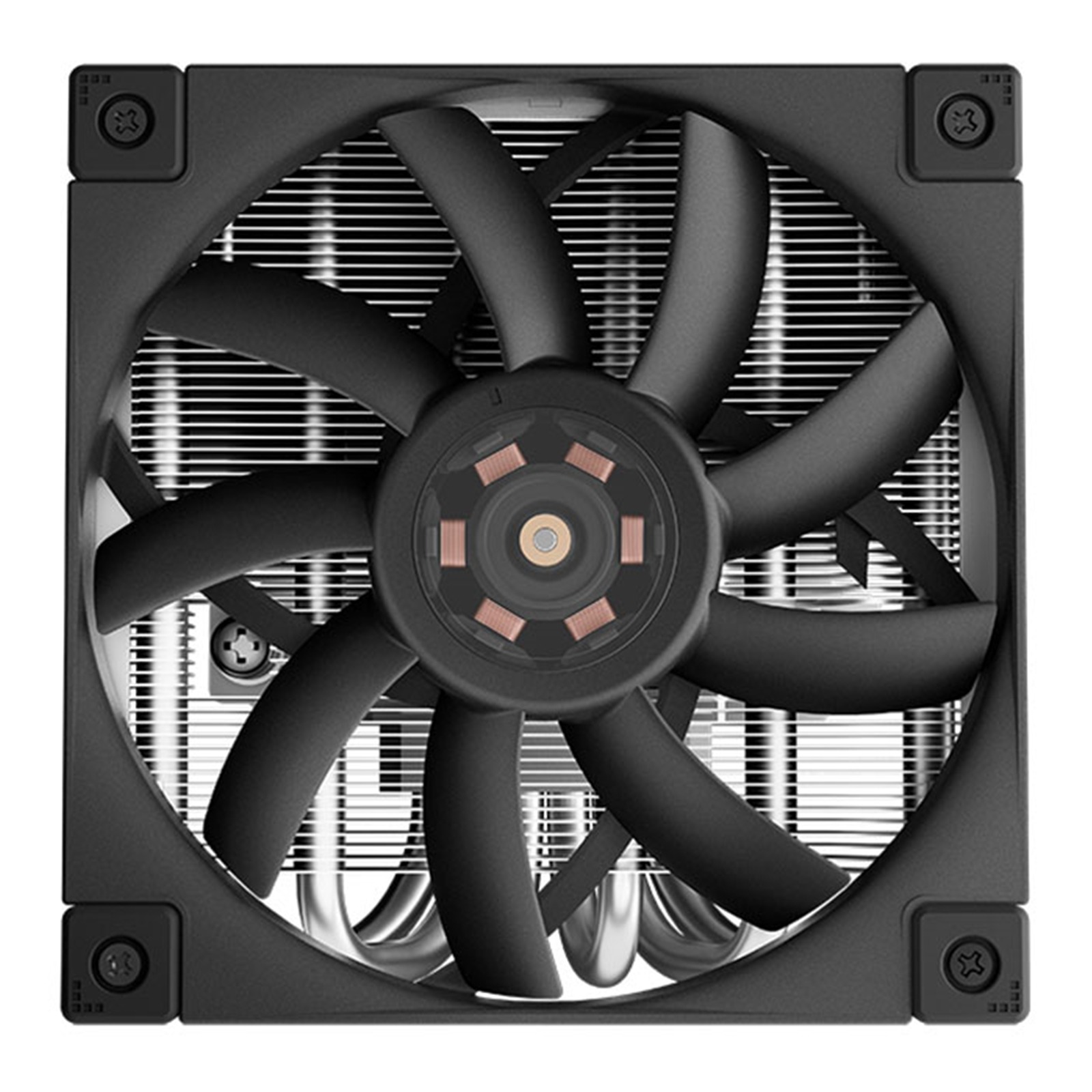

DeepCool AN600 Low-Profile CPU Cooler, Compact & High-Performance
Upgrade your small form-factor PC with the DeepCool AN600 Low-Profile CPU Cooler, designed for excellent cooling performance in tight spaces. With a 120mm high-airflow PWM fan, six heat pipes, and an overhanging design, this cooler efficiently cools both the CPU and RAM modules up to 40mm tall. Perfect for ITX builds, the DeepCool AN600 Low-Profile CPU Cooler combines quiet operation, compact design, and superior heat dissipation.
Key Features of DeepCool AN600 Low-Profile CPU Cooler
- 180W TDP for high-performance CPU cooling
- 120mm PWM top-flow fan for quiet operation under 24.2 dB(A)
- Six high-efficiency heat pipes and a raised copper coldplate
- Active cooling for RAM modules up to 40mm tall
- Slim 67mm profile ideal for ITX motherboards
- All-metal backplate for easy and secure installation
- White LED for subtle illumination
- Fluid Dynamic Bearing ensures long-lasting and quiet performance
Specifications
General
- Model: AN600
- TDP: 180W
- Dimensions (L x W x H): 122 x 120 x 67 mm
- Net Weight: 628 g
- Socket Compatibility: Intel LGA1700/1200/1151/1150/1155/1851, AMD AM5/AM4
Heatsink
- Dimensions: 121 x 120 x 52 mm
- Heatpipe: 6 x 6mm
- Raised Copper Coldplate for improved heat transfer
Fan
- Dimensions: 120 x 120 x 15 mm
- Speed: 500~1850 RPM ±10%
- Airflow: 61.56 CFM
- Air Pressure: 1.97 mmAq
- Noise Level: ≤24.4 dB(A)
- Bearing: Fluid Dynamic Bearing
- Connector: 4-pin PWM
Low-Noise Mode (LSP)
- Fan Speed: 500~1250 RPM ±10%
- Airflow: 41.51 CFM
- Noise Level: ≤20 dB(A)
Why Choose DeepCool AN600 Low-Profile CPU Cooler?
The DeepCool AN600 Low-Profile CPU Cooler, available at ProDisk IT, is perfect for compact builds without compromising on performance. Its top-flow design actively cools RAM and VRMs while maintaining quiet operation. The slim profile makes it compatible with most ITX motherboards, and the all-metal backplate ensures secure installation.
| Weight | 0.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
DESIGN
| Radiator material | Aluminum |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Number of fan blades | 9 |
ENERGY MANAGEMENT
| Fan voltage | 12 V |
| Fan current | 0.27 A |
| Thermal Design Power (TDP) | 180 W |
| Fan power consumption | 3.24 W |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 61.56 cfm |
| Maximum air pressure | 1.97 mmH2O |
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 24.2 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 628 g |
| Height | 67 mm |
| Width | 122 mm |
| Depth | 120 mm |
| Radiator width | 12.1 cm |
| Radiator depth | 12 cm |
| Radiator height | 5.2 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
