DeepCool AK620 Digital Pro CPU Air Cooler, Dual-Tower with Digital Display, 120mm FDB Fans, ARGB Lighting, 6 Copper Heatpipes, LGA1700/AM5 Compatible, High-Performance Quiet Cooling for Gaming PCs
| Product Type | Fan CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 1750RPM |
| LED Colour | Addressable RGB |
£50.40
Guaranteed Safe Checkout

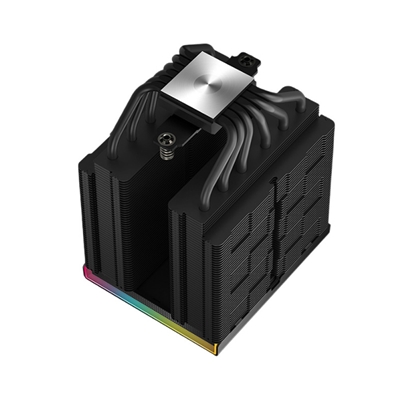

DeepCool AK620 Digital, Elite Cooling with Stylish RGB
The DeepCool AK620 Digital is designed for users seeking elite cooling performance, real-time system information, and stylish RGB accents. The dual 120mm PWM fans provide strong airflow while maintaining quiet operation. The heatsink’s dual-tower structure and six heatpipes offer highly efficient thermal dissipation, making it ideal for high TDP processors.
Multi-Line Digital Display for Real-Time Monitoring
The standout feature of the DeepCool AK620 Digital is the integrated multi-line digital screen, which displays vital CPU data in real time. Fully configurable through DeepCool’s dedicated software, this display allows users to track temperature, usage, wattage, and frequency at a glance.
Powerful & Quiet Dual PWM Fans
Equipped with dual 120mm PWM fans, the DeepCool AK620 Digital delivers powerful airflow while remaining whisper-quiet. Fans are optimized for efficiency with fluid dynamic bearings, maintaining low noise levels without compromising performance.
ARGB Lighting & Build Synchronization
This cooler includes stunning ARGB lighting, allowing you to synchronize colors and effects with your build’s theme through supported motherboard headers. The DeepCool AK620 Digital combines performance and aesthetics in one premium package.
Product Specifications
- Manufacturer: DeepCool
- Model Number: R-AK620-BKAPMN-G
- EAN: 6933412728818
Physical Dimensions
- Product Dimensions: 129 x 138 x 163 mm (L x W x H)
- Heatsink Dimensions: 127 x 110 x 154 mm (L x W x H)
- Net Weight: 1491 g
Cooling System
- Heatpipes: 6 x 6 mm copper heatpipes
- Fan Dimensions: 120 x 120 x 25 mm
- Fan Speed: 500–1750 RPM (±10%)
- Fan Airflow: 60.89 CFM
- Fan Air Pressure: 2.91 mmAq
- Noise Level: =25 dB(A)
- Fan Connector: 4-pin PWM
- Bearing Type: Fluid Dynamic Bearing
- Rated Voltage: 12 VDC
- Rated Current: 0.25 A
- Power Consumption: 3 W
Lighting & Display
- LED Type: Addressable RGB
- LED Connector: 3-pin (+5V-D-G) and 9-pin USB 2.0
- LED Rated Voltage: 5 VDC
- LED Power Consumption: 5.55 W
- Display Type: Multi-line digital screen
- Display Functions: Real-time monitoring of CPU temperature, usage, wattage, and frequency
- Control Interface: Software control via motherboard USB 2.0 header
Compatibility
- Intel Socket Support: LGA2066, LGA2011-v3, LGA2011, LGA1700, LGA1200, LGA1151,
- LGA1150, LGA1155
- AMD Socket Support: AM5, AM4
Additional Features
- Mounting System: All-metal secure mounting kit
- Warranty: 3 years
Why Choose Prodiskit for DeepCool AK620 Digital
- Fast, reliable shipping with secure packaging
- Genuine DeepCool AK620 Digital sourced directly from the manufacturer
- Dedicated customer support for installation guidance
- Competitive pricing and exclusive deals on premium CPU coolers
| Weight | 1.49 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
3 Year Return To Base Warranty
DESIGN
| Radiator material | Aluminum |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| LED connector type | 3-pin |
ENERGY MANAGEMENT
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Fan power consumption | 3 W |
| LED voltage | 5 V |
| LED power consumption (fan) | 5.55 W |
PACKAGING CONTENT
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
PERFORMANCE
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 60.89 cfm |
| Maximum air pressure | 2.91 mmH2O |
| Fan speed (max) | 1750 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 25 dB |
| Pulse-width modulation (PWM) support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
WEIGHT & DIMENSIONS
| Weight | 1.49 kg |
| Height | 163 mm |
| Width | 138 mm |
| Depth | 129 mm |
| Radiator width | 11 cm |
| Radiator depth | 12.7 cm |
| Radiator height | 15.4 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
